Gene-driven Perturbation (GNP) Overexpression Simulation

This tutorial demonstrates how to use the GNP (Gene Network Perturbation) module to perform an in silico gene overexpression (OE) analysis on mouse Stereo-seq spatial transcriptomics data.

⸻

1. Dataset Overview

We utilize high-resolution spatial transcriptomics data from the Ma2024 dataset:

Study Spatial transcriptomic landscape unveils immunoglobulin-associated senescence as a hallmark of aging Ma, Shuai et al., Cell, 2024

Biological Context This dataset captures the spatial organization of transcriptional programs associated with brain aging in mice. In this tutorial, we focus on simulating gene overexpression in a targeted cell population to investigate how elevated gene activity may reshape local cellular niches and aging-associated spatial patterns.

import os
import torch
import numpy as np
import pandas as pd
import scanpy as sc
import gseapy as gp
import anndata as ad
import seaborn as sns
from typing import Optional
from pathlib import Path
import matplotlib.pyplot as plt
from matplotlib.patches import Rectangle
import matplotlib.colors as mcolors
from matplotlib.colors import LinearSegmentedColormap
import sys
sys.path.append("/inspire/ssd/project/sais-lifescience/public/workspace/yangyiwen/Brainbeacon_v2/BrainBeacon/")
from brainbeacon.pipeline.cell_embedding import run_bbcellformer_pipeline
from brainbeacon.pipeline.perturbation import apply_gene_perturbation, inject_cells_into_niche, plot_global_euclidean_shift
from brainbeacon.pipeline.perturbation import analyze_embedding_similarity_change, plot_cosine_to_centroids_with_perturb_OE
from brainbeacon.pipeline.perturbation import analyze_embedding_similarity_change_similarity_niche_OE, analyze_embedding_similarity_change_OE
from brainbeacon.utils import set_seed
import brainbeacon.configs.config as cfg
from brainbeacon.configs.config_train import config_train as cfg_train
from brainbeacon.utils import compute_density_token, compute_deviation_bin_rapid_v2
from brainbeacon.utils import convert_spatial_to_um, platform_radius_map
import logging
logging.basicConfig(
    level=logging.INFO,  # 或 level=logging.DEBUG
    format='%(asctime)s %(levelname)s %(message)s'
)

import warnings
plt.rcParams["pdf.fonttype"] = 42
warnings.filterwarnings("ignore")
set_seed(42)

Device setup

# Set GPU
os.environ["CUDA_VISIBLE_DEVICES"] = "0"
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(f"Using device: {device}")
if device.type == "cuda":
    print(f"Using GPU: {torch.cuda.get_device_name(torch.cuda.current_device())}")

# Define base paths and dataset info
out_fig_dir = "/inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/output/virtual_perturbation/fig4_subfig_OE"
os.makedirs(out_fig_dir, exist_ok=True)

Using device: cuda
Using GPU: NVIDIA H800

Paths and dataset config

Example dataset ()

Path to the processed AnnData object used in this tutorial. The processed file (adata_outer_ensembl.h5ad) can be downloaded directly from: https://drive.google.com/file/d/1-z8J8xiRN0qD0preVQr8cAHKQXuScBp2/view?usp=drive_link Alternatively, the original raw Stereo-seq data can be obtained from the CNGBdb STOmics portal: https://db.cngb.org/stomics/datasets/STDS0000247/data

# =============================================================================
# Dataset and Basic Setup
# =============================================================================
dataset_name = "ma2024aging_cell2niche_niche_inneroe"
specie = "mouse"  # NOTE: keep original variable name for compatibility
assay = "stereo"

# =============================================================================
# Prior Knowledge / Paths
# =============================================================================
# Base directories
BASE_DIR = Path("/inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/")

# Sync into cfg (assumes cfg / cfg_train already exist in your notebook/runtime)
cfg.DEFAULT_PATHS["BASE_DIR"] = str(BASE_DIR)
cfg.DEFAULT_PATHS["PRETRAIN_DIR"] = "/inspire/ssd/project/sais-lifescience/public/workspace/yangyiwen/Brainbeacon/bb_PriorKnowledge/"
cfg.DEFAULT_PATHS["PRIOR_DIR"] = cfg.DEFAULT_PATHS["PRETRAIN_DIR"]
cfg.DEFAULT_PATHS["GENE_DICT_PATH"] = (
    "/inspire/ssd/project/sais-lifescience/public/workspace/yangyiwen/Brainbeacon/bb_PriorKnowledge/model_h5ad_1211.h5ad"
)

# Path to the processed AnnData object used in this tutorial.
# Users may start from the raw data and follow their own preprocessing pipeline if desired.
adata_path = BASE_DIR / "data" / "adata_outer_ensembl.h5ad"  # adata_outer_ensembl / adata_inner_ensembl

gene_dict_path = Path(cfg.DEFAULT_PATHS["GENE_DICT_PATH"])
gene_mean_path = Path(
    "/inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/bb_PriorKnowledge/stereo-seq_gene_nonzero_means_metacell_2.npy"
)

# ESM embedding path
cfg_train["esm_embedding_path"] = (
    "/inspire/ssd/project/sais-lifescience/public/workspace/yangyiwen/Brainbeacon/bb_PriorKnowledge/esm2_embeddings_d5120.pt"
)

# Basic sanity checks (fail fast)
assert adata_path.exists(), f"adata_path not found: {adata_path}"
assert gene_dict_path.exists(), f"gene_dict_path not found: {gene_dict_path}"
assert gene_mean_path.exists(), f"gene_mean_path not found: {gene_mean_path}"
assert Path(cfg_train["esm_embedding_path"]).exists(), f"esm_embedding_path not found: {cfg_train['esm_embedding_path']}"

# =============================================================================
# Pretrained Checkpoints
# =============================================================================
pretrain_dir = BASE_DIR / "pretrained"

bb_ckpt_name = "epoch_0_setp_800000.pt"
cellformer_ckpt_name = "cellformer_epoch99.pt"  # trained on all ma2024aging data
# cellformer_ckpt_name = "cellformer.ckpt"      # CellPLM original checkpoint

bb_ckpt_path = Path("/inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/bb_PriorKnowledge/epoch_0_step_800000.pt")
cellplm_ckpt_path = Path("/inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/bb_PriorKnowledge/cellformer_epoch99.pt")

assert bb_ckpt_path.exists(), f"bb_ckpt_path not found: {bb_ckpt_path}"
assert cellplm_ckpt_path.exists(), f"cellplm_ckpt_path not found: {cellplm_ckpt_path}"

# =============================================================================
# Output Naming
# =============================================================================
cd_weight = 0.02
use_hvg = True
n_hvg = 5000

bb_ckpt_tag = bb_ckpt_name.replace(".pt", "").replace(".ckpt", "")
if use_hvg:
    method_name = f"bbcellformer_{bb_ckpt_tag}_hvg{n_hvg}_cd{cd_weight}"
else:
    method_name = f"bbcellformer_{bb_ckpt_tag}_cd{cd_weight}"

output_dir = BASE_DIR / "downstream_tasks" / "virtual_perturbation" / "outputs" / dataset_name / method_name
output_dir.mkdir(parents=True, exist_ok=True)

# =============================================================================
# Load Data and (Optionally) Select Slices
# =============================================================================
full_adata = sc.read_h5ad(str(adata_path))

selected_slices = ["Hippocampus_Y_2_1", "Hippocampus_O_2_1"]

# NOTE: Uncomment if you want to restrict to selected slices
# adata = full_adata[full_adata.obs["slice"].isin(selected_slices)].copy()
adata = full_adata.copy()

# =============================================================================
# Derive Labels
# =============================================================================
def infer_cell_label(slice_name: str) -> Optional[str]:
    """Infer 'Young' / 'Old' from slice naming convention."""
    if slice_name.startswith("Hippocampus_Y"):
        return "Young"
    if slice_name.startswith("Hippocampus_O"):
        return "Old"
    return None  # Unknown slice pattern

# Apply label + batch
adata.obs["cell_label"] = adata.obs["slice"].astype(str).map(infer_cell_label)
adata.obs["batch"] = adata.obs["slice"]

# Enforce categorical type (keeps only 'Young' and 'Old' as known categories)
adata.obs["cell_label"] = pd.Categorical(adata.obs["cell_label"], categories=["Young", "Old"])

DEG_path = "/inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/bb_PriorKnowledge/1-s2.0-S0092867424012017-mmc2.xlsx"
#download from supplementary materials of Ma et al., Cell, 2024
DEG_df = pd.read_excel(DEG_path, sheet_name="Hippocampus", skiprows=1)
n_unique_genes = DEG_df["Gene"].str.upper().nunique()
print("Unique gene count:", n_unique_genes)

Unique gene count: 2628

Set ROI

Next, we select regions of interest (ROIs) to further investigate how the perturbation reshapes local cellular niches after gene perturbation. These ROIs enable a focused analysis of spatial and niche-level changes induced by the perturbation.

ol_cells = adata[adata.obs["slice"] == "Hippocampus_O_2_1"].copy()
ol_roi = ol_cells[
    (ol_cells.obsm["spatial"][:, 0] > 60) &
    (ol_cells.obsm["spatial"][:, 1] > 10) &
    (ol_cells.obsm["spatial"][:, 0] < 88) &
    (ol_cells.obsm["spatial"][:, 1] < 30)
].copy()
print(ol_roi)
ol_cells.obs["cell_type"] = ol_cells.obs["cell_type"].astype("category")
categories = ol_cells.obs["cell_type"].cat.categories
ol_roi.obs["cell_type"] = pd.Categorical(
    ol_roi.obs["cell_type"], categories=categories, ordered=True
)

ol_cells.uns["cell_type_colors"] = ol_cells.uns.get(
    "cell_type_colors", sc.pl.palettes.default_20[:len(categories)]
)
ol_roi.uns["cell_type_colors"] = ol_cells.uns["cell_type_colors"]

roi_coords = ol_roi.obsm["spatial"]
xmin, xmax = roi_coords[:, 0].min(), roi_coords[:, 0].max()
ymin, ymax = roi_coords[:, 1].min(), roi_coords[:, 1].max()
xcenter, ycenter = (xmin + xmax) / 2, (ymin + ymax) / 2
os.makedirs(out_fig_dir, exist_ok=True)

fig_ol = sc.pl.spatial(
    ol_cells, color="cell_type", spot_size=1, show=False, return_fig=True
)
ax_ol = fig_ol.axes[0]
rect = Rectangle(
    (xmin, ymin), xmax - xmin, ymax - ymin,
    linewidth=1.2, edgecolor='black', facecolor='none', linestyle='--'
)
ax_ol.add_patch(rect)

ax_ol.text(
    xcenter, ymax + 5, "ROI",
    color='black', fontsize=10, ha='center', va='bottom'
)
fig_roi = sc.pl.spatial(
    ol_roi, color="cell_type", spot_size=1, show=False, return_fig=True
)

AnnData object with n_obs × n_vars = 481 × 20318
    obs: 'x', 'y', 'cell_type', 'n_genes_by_counts', 'log1p_n_genes_by_counts', 'total_counts', 'log1p_total_counts', 'pct_counts_in_top_50_genes', 'pct_counts_in_top_100_genes', 'pct_counts_in_top_200_genes', 'pct_counts_in_top_500_genes', 'total_counts_mito', 'log1p_total_counts_mito', 'pct_counts_mito', 'clusters', 'cell_label', 'slice', 'species', 'age_group', 'batch'
    var: 'gene_symbol', 'ensembl', 'human_symbol', 'human_ensembl'
    obsm: 'X_pca', 'X_umap', 'spatial'
    layers: 'lognorm', 'raw_count'

# === Matplotlib settings (ensure editable text in PDF/SVG) ===
warnings.filterwarnings("ignore")
logging.getLogger('matplotlib.font_manager').disabled = True

plt.rcParams['pdf.fonttype'] = 42
plt.rcParams['ps.fonttype']  = 42
plt.rcParams['svg.fonttype'] = 'none'
plt.rcParams['font.sans-serif'] = ['Arial']
plt.rcParams['font.family'] = 'sans-serif'

# === Ensure output directory ===
os.makedirs(out_fig_dir, exist_ok=True)

# === subset slice ===
adata_Y = adata[adata.obs["slice"] == "Hippocampus_Y_2_1"].copy()

# === coordinates ===
x = adata_Y.obsm["spatial"][:, 0]
y = adata_Y.obsm["spatial"][:, 1]
print(f"x: {x.min():.1f} ~ {x.max():.1f}, y: {y.min():.1f} ~ {y.max():.1f}")

# === ROI bounds (x in (60, 88), y in (10, 30)) ===
roi_mask = (x > 50) & (x < 78) & (y > 5) & (y < 25)
y_roi = adata_Y[roi_mask].copy()
print(f"ROI cells: {y_roi.n_obs}")

# === sync categories & colors ===
adata_Y.obs["cell_type"] = adata_Y.obs["cell_type"].astype("category")
cats = adata_Y.obs["cell_type"].cat.categories
y_roi.obs["cell_type"] = pd.Categorical(y_roi.obs["cell_type"], categories=cats, ordered=True)

adata_Y.uns["cell_type_colors"] = adata_Y.uns.get(
    "cell_type_colors", sc.pl.palettes.default_20[:len(cats)]
)
y_roi.uns["cell_type_colors"] = adata_Y.uns["cell_type_colors"]

# === full view with ROI box ===
fig1 = sc.pl.spatial(adata_Y, color="cell_type", spot_size=1, show=False, return_fig=True)

# Add dashed ROI box
roi_xy = y_roi.obsm["spatial"]
xmin, xmax = roi_xy[:, 0].min(), roi_xy[:, 0].max()
ymin, ymax = roi_xy[:, 1].min(), roi_xy[:, 1].max()
xcenter, ycenter = (xmin + xmax) / 2, (ymin + ymax) / 2

ax = fig1.axes[0]
rect = Rectangle((xmin, ymin), xmax - xmin, ymax - ymin,
                 linewidth=1.2, edgecolor='black', facecolor='none', linestyle='--')
ax.add_patch(rect)
ax.text(xcenter, ymax + 5, "ROI", color='black', fontsize=10, ha='center', va='bottom')
# === ROI-only ===
fig2 = sc.pl.spatial(y_roi, color="cell_type", spot_size=1, show=False, return_fig=True)

x: 1.0 ~ 85.0, y: 1.0 ~ 52.0
ROI cells: 495

ol_roi.obs["brain_region"] = ol_roi.obs["slice"]
ol_roi.obs["brain_region_main"] = ol_roi.obs["slice"]
ol_roi.obsm["spatial"] = ol_roi.obsm["spatial"].astype(np.float32)
ol_roi = compute_deviation_bin_rapid_v2(ol_roi)
ol_roi = convert_spatial_to_um(ol_roi, "STEREO")
radius = platform_radius_map.get("STEREO_bin", 8)
ol_roi, _ = compute_density_token(ol_roi, radius)

y_roi.obs["brain_region"] = y_roi.obs["slice"]
y_roi.obs["brain_region_main"] = y_roi.obs["slice"]
y_roi.obsm["spatial"] = y_roi.obsm["spatial"].astype(np.float32)
y_roi = compute_deviation_bin_rapid_v2(y_roi)
y_roi = convert_spatial_to_um(y_roi, "STEREO")
radius = platform_radius_map.get("STEREO_bin", 8)
y_roi, _ = compute_density_token(y_roi, radius)

adata_fov_OL = ad.concat([ol_roi, y_roi], join="outer")
adata_fov_OL.var = adata.var.loc[adata_fov_OL.var_names].copy()
output_prefix_ori = "original"
adata_fov_OL.obs["split"] = "train"
os.makedirs(output_dir, exist_ok=True)
ori_input_adata_path = os.path.join(output_dir, f"{output_prefix_ori}_input.h5ad")
adata_fov_OL.write(ori_input_adata_path)
print(f"Saved selected slices to: {ori_input_adata_path}")

Saved selected slices to: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/original_input.h5ad

Run Original Inference

This step constructs the baseline (unperturbed) reference by running inference kon the original data, which serves as the control condition for all subsequent perturbation analyses.

adata_ori = run_bbcellformer_pipeline(
    adata_path=ori_input_adata_path,
    specie=specie,
    assay=assay,
    gene_dict_path=gene_dict_path,
    gene_mean_path=gene_mean_path,
    bb_ckpt_path=bb_ckpt_path,
    cellplm_ckpt_path=cellplm_ckpt_path,
    output_dir=output_dir,
    output_prefix=output_prefix_ori,
    config_train=cfg_train,
    n_hvg=n_hvg,
    cd_weight=cd_weight,
    use_hvg=use_hvg,
    weight_mode="expression",
    use_batch=False,
    use_spatial=True,
    force_tokenize=True,
    do_fit=True,  # recommended to set to True for original reconstruction
    device=device,
    fit_epochs=100,
)
print("Original reconstruction complete. Embeddings and model saved.")
print("adata_ori:", adata_ori)

ori_result_adata_path = os.path.join(output_dir, f"{output_prefix_ori}_result.h5ad")
adata_ori.write(ori_result_adata_path)
print(f"Original result adata saved to: {ori_result_adata_path}")

Forcing re-tokenization: clearing existing .parquet files and token folders...
No existing tokenized files found. Running tokenization...
path to process: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/original_input.h5ad
before quality control adata shape: (976, 20318)
After HVG (5000) selection: (976, 5000)
Computing cell density...
compute_density_token time:  0.0038387576738993325 min
Begin processing: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/original_bb_token_dir/tokens-0000.parquet
Table shape from parquet = 976
Preprocessing time: 0.13 minutes
Loaded pretrain_model checkpoint: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/bb_PriorKnowledge/epoch_0_step_800000.pt
obs_names and pred_indices are in the same order.
Embeddings saved to /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/original_bb_embeddings.npz
Time cost:  0.3175329407056173
BB inference complete. Saved to: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/original_bb_embeddings.npz
[INFO] Using explicitly provided CellFormer checkpoint: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/bb_PriorKnowledge/cellformer_epoch99.pt
********** gene list size: 92076 **********
********** loading skip parameters: set() **********
After filtering, 20316 genes remain.
Epoch 0 | Train loss: 19754.3462 | Valid loss: 20418.4263
Epoch 1 | Train loss: 17814.4434 | Valid loss: 17169.4941
Epoch 2 | Train loss: 15183.4585 | Valid loss: 13781.2520
Epoch 3 | Train loss: 11961.5400 | Valid loss: 10546.7905
Epoch 4 | Train loss: 9717.5762 | Valid loss: 8113.6162
Epoch 5 | Train loss: 7772.9041 | Valid loss: 7407.3206
Epoch 6 | Train loss: 7313.2432 | Valid loss: 7223.4465
Epoch 7 | Train loss: 7241.3916 | Valid loss: 7218.8459
Epoch 8 | Train loss: 7173.7888 | Valid loss: 7216.5046
Epoch 9 | Train loss: 7202.7556 | Valid loss: 7213.8367
Epoch 10 | Train loss: 7336.0952 | Valid loss: 7210.1489
Epoch 11 | Train loss: 7185.5908 | Valid loss: 7206.6870
Epoch 12 | Train loss: 7419.1924 | Valid loss: 7202.9348
Epoch 13 | Train loss: 7183.8896 | Valid loss: 7198.8628
Epoch 14 | Train loss: 7136.3804 | Valid loss: 7195.8555
Epoch 15 | Train loss: 7220.1282 | Valid loss: 7191.6562
Epoch 16 | Train loss: 7207.6970 | Valid loss: 7188.3438
Epoch 17 | Train loss: 7234.3596 | Valid loss: 7184.7644
Epoch 18 | Train loss: 7086.0078 | Valid loss: 7180.6450
Epoch 19 | Train loss: 7186.0859 | Valid loss: 7176.7720
Epoch 20 | Train loss: 7314.2183 | Valid loss: 7171.2444
Epoch 21 | Train loss: 7039.5352 | Valid loss: 7162.0793
Epoch 22 | Train loss: 7108.5981 | Valid loss: 7162.9985
Epoch 23 | Train loss: 7162.5605 | Valid loss: 7153.5894
Epoch 24 | Train loss: 7172.5879 | Valid loss: 7153.8652
Epoch 25 | Train loss: 7164.2371 | Valid loss: 7147.8079
Epoch 26 | Train loss: 7072.0237 | Valid loss: 7142.3708
Epoch 27 | Train loss: 7235.6038 | Valid loss: 7143.4756
Epoch 28 | Train loss: 7169.2344 | Valid loss: 7139.4495
Epoch 29 | Train loss: 7099.4167 | Valid loss: 7131.1633
Epoch 30 | Train loss: 7199.0378 | Valid loss: 7129.1655
Epoch 31 | Train loss: 7277.7117 | Valid loss: 7124.9893
Epoch 32 | Train loss: 7105.2947 | Valid loss: 7119.7693
Epoch 33 | Train loss: 7005.3721 | Valid loss: 7117.6055
Epoch 34 | Train loss: 7091.3821 | Valid loss: 7112.8389
Epoch 35 | Train loss: 7042.4587 | Valid loss: 7108.1072
Epoch 36 | Train loss: 7141.8374 | Valid loss: 7103.7412
Epoch 37 | Train loss: 7117.8672 | Valid loss: 7099.7349
Epoch 38 | Train loss: 7023.4429 | Valid loss: 7094.4160
Epoch 39 | Train loss: 7052.7529 | Valid loss: 7089.2034
Epoch 40 | Train loss: 7008.0156 | Valid loss: 7084.6860
Epoch 41 | Train loss: 7140.2300 | Valid loss: 7080.0132
Epoch 42 | Train loss: 7011.5356 | Valid loss: 7075.1487
Epoch 43 | Train loss: 7187.6658 | Valid loss: 7070.1191
Epoch 44 | Train loss: 7162.8506 | Valid loss: 7064.9451
Epoch 45 | Train loss: 6939.2012 | Valid loss: 7059.8992
Epoch 46 | Train loss: 6983.5208 | Valid loss: 7054.8860
Epoch 47 | Train loss: 7025.1587 | Valid loss: 7049.5667
Epoch 48 | Train loss: 7034.9082 | Valid loss: 7044.4058
Epoch 49 | Train loss: 7024.4331 | Valid loss: 7039.7097
Epoch 50 | Train loss: 6972.8816 | Valid loss: 7034.4268
Epoch 51 | Train loss: 7055.8447 | Valid loss: 7029.2246
Epoch 52 | Train loss: 7000.6719 | Valid loss: 7024.8030
Epoch 53 | Train loss: 7098.1392 | Valid loss: 7020.6677
Epoch 54 | Train loss: 6944.7014 | Valid loss: 7016.8149
Epoch 55 | Train loss: 6951.4971 | Valid loss: 7012.1958
Epoch 56 | Train loss: 7022.1548 | Valid loss: 7006.7651
Epoch 57 | Train loss: 7018.0371 | Valid loss: 7002.4963
Epoch 58 | Train loss: 7031.2852 | Valid loss: 6998.7092
Epoch 59 | Train loss: 6929.1497 | Valid loss: 6995.4094
Epoch 60 | Train loss: 7036.0046 | Valid loss: 6991.7349
Epoch 61 | Train loss: 6976.5562 | Valid loss: 6987.4307
Epoch 62 | Train loss: 6927.7271 | Valid loss: 6983.2922
Epoch 63 | Train loss: 7000.6475 | Valid loss: 6979.1929
Epoch 64 | Train loss: 7093.4644 | Valid loss: 6975.1660
Epoch 65 | Train loss: 6926.8337 | Valid loss: 6971.0662
Epoch 66 | Train loss: 6851.7664 | Valid loss: 6966.5933
Epoch 67 | Train loss: 7034.8625 | Valid loss: 6962.4028
Epoch 68 | Train loss: 6878.9407 | Valid loss: 6958.4116
Epoch 69 | Train loss: 6999.4861 | Valid loss: 6954.3601
Epoch 70 | Train loss: 7005.4026 | Valid loss: 6950.0229
Epoch 71 | Train loss: 6938.2839 | Valid loss: 6945.4683
Epoch 72 | Train loss: 6919.0798 | Valid loss: 6941.2195
Epoch 73 | Train loss: 6975.8445 | Valid loss: 6937.4939
Epoch 74 | Train loss: 6994.0798 | Valid loss: 6933.9502
Epoch 75 | Train loss: 7068.9517 | Valid loss: 6930.2771
Epoch 76 | Train loss: 6771.8110 | Valid loss: 6926.0325
Epoch 77 | Train loss: 7116.1509 | Valid loss: 6922.0166
Epoch 78 | Train loss: 6822.9250 | Valid loss: 6918.2007
Epoch 79 | Train loss: 6880.4580 | Valid loss: 6914.6807
Epoch 80 | Train loss: 6768.1404 | Valid loss: 6911.0068
Epoch 81 | Train loss: 6660.9297 | Valid loss: 6906.6199
Epoch 82 | Train loss: 6833.1191 | Valid loss: 6902.5620
Epoch 83 | Train loss: 6880.1580 | Valid loss: 6898.6567
Epoch 84 | Train loss: 6931.6531 | Valid loss: 6895.2039
Epoch 85 | Train loss: 6855.9238 | Valid loss: 6891.3103
Epoch 86 | Train loss: 6990.7883 | Valid loss: 6887.4758
Epoch 87 | Train loss: 6835.4873 | Valid loss: 6883.1985
Epoch 88 | Train loss: 6870.0300 | Valid loss: 6879.4187
Epoch 89 | Train loss: 6879.7190 | Valid loss: 6875.8972
Epoch 90 | Train loss: 6798.6077 | Valid loss: 6872.0786
Epoch 91 | Train loss: 6907.3708 | Valid loss: 6868.3650
Epoch 92 | Train loss: 6903.1123 | Valid loss: 6864.8435
Epoch 93 | Train loss: 6883.6060 | Valid loss: 6861.2314
Epoch 94 | Train loss: 6739.6294 | Valid loss: 6857.4692
Epoch 95 | Train loss: 6816.6841 | Valid loss: 6853.9160
Epoch 96 | Train loss: 6855.8743 | Valid loss: 6850.5432
Epoch 97 | Train loss: 6965.2151 | Valid loss: 6847.2788
Epoch 98 | Train loss: 6803.6355 | Valid loss: 6843.8608
Epoch 99 | Train loss: 6832.2544 | Valid loss: 6840.0640
After filtering, 20316 genes remain.
Model saved to /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/original_cellformer.pt
Embeddings saved to /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/original_embeddings.npz
Original reconstruction complete. Embeddings and model saved.
adata_ori: AnnData object with n_obs × n_vars = 976 × 20316
    obs: 'x', 'y', 'cell_type', 'n_genes_by_counts', 'log1p_n_genes_by_counts', 'total_counts', 'log1p_total_counts', 'pct_counts_in_top_50_genes', 'pct_counts_in_top_100_genes', 'pct_counts_in_top_200_genes', 'pct_counts_in_top_500_genes', 'total_counts_mito', 'log1p_total_counts_mito', 'pct_counts_mito', 'clusters', 'cell_label', 'slice', 'species', 'age_group', 'batch', 'brain_region', 'brain_region_main', 'slice_brain_area', 'density_token', 'split', 'platform', 'valid_split', 'x_FOV_px', 'y_FOV_px'
    var: 'gene_symbol', 'ensembl', 'human_symbol', 'human_ensembl'
    obsm: 'X_pca', 'X_umap', 'deviation_bin', 'neighbor_gene_distribution', 'spatial', 'spatial_um', 'bb_emb', 'X_emb', 'X_pred'
    layers: 'lognorm', 'raw_count'
Original result adata saved to: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/original_result.h5ad

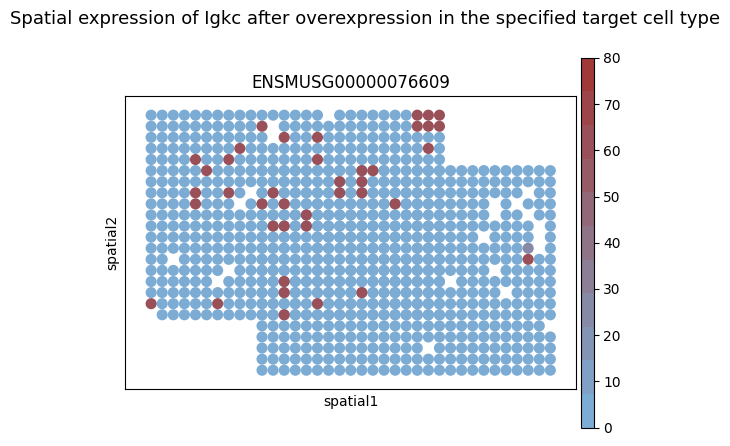

Perturbation module: in silico gene overexpression (OE)

This module performs an in silico perturbation by overexpressing a target gene in a specified cell population.

In this example, we simulate overexpression of Igkc in OL-WM cells from the young mouse hippocampus slice (“Hippocampus_Y_2_1”).

The overexpression value is explicitly set to 60, meaning that the expression of Igkc in the selected cells will be overwritten to this fixed value.

Notes:

• You may change value to test different absolute expression levels.

• Alternatively, you can set multiplier instead of value to scale gene expression relative to its original magnitude.

• You may also omit filter_by or the cell_type field to apply overexpression to all cells within a slice, or even across the entire dataset.

perturbed_adata_final, perturbed_cells_final = apply_gene_perturbation(
    adata=adata_fov_OL,
    gene_list=["Igkc"],                 # Target gene(s) to perturb (can be multiple genes)
    mode="overexpress",                 # Perturbation mode: overexpression (OE)
    filter_by={
        "slice": "Hippocampus_Y_2_1",   # Target slice (young mouse)
        "cell_type": "OL-WM",           # Target cell type (set to None to affect all cell types)
    },
    value=60,                           # Fixed overexpression value
    # multiplier=2,                     # Optional: scale expression by a factor instead of fixed value
)
print(f"Perturbed {len(perturbed_cells_final)} cells: set expression of target gene(s) to 60.")

# Save perturbed input AnnData
output_prefix_perturb = "ko_old_final"
perturb_input_adata_path = os.path.join(output_dir, f"{output_prefix_perturb}_input.h5ad")
perturbed_adata_final.write(perturb_input_adata_path)
print(f"Perturbed input adata saved to: {perturb_input_adata_path}")

# =============================================================================
# Run perturbation inference
# =============================================================================
# The perturbed AnnData is passed through the pretrained BrainBeacon + CellFormer
# pipeline to reconstruct embeddings under the perturbed gene expression state.

cellplm_ckpt_path = os.path.join(output_dir, f"{output_prefix_ori}_cellformer.pt")
adata_perturb_final = run_bbcellformer_pipeline(
    adata_path=perturb_input_adata_path,
    specie=specie,
    assay=assay,
    gene_dict_path=gene_dict_path,
    gene_mean_path=gene_mean_path,
    bb_ckpt_path=bb_ckpt_path,
    cellplm_ckpt_path=cellplm_ckpt_path,
    output_dir=output_dir,
    output_prefix=output_prefix_perturb,
    config_train=cfg_train,
    n_hvg=n_hvg,
    cd_weight=cd_weight,
    use_hvg=use_hvg,
    use_batch=False,
    use_spatial=True,
    weight_mode="expression",
    force_tokenize=True,
    do_fit=False,
    fit_epochs=10,
    device=device,
)
print("Perturbation reconstruction complete. Embeddings and model saved.")
print("adata_perturb:", adata_perturb_final)

perturb_result_adata_path = os.path.join(output_dir, f"{output_prefix_perturb}_result.h5ad")
adata_perturb_final.write(perturb_result_adata_path)
print(f"Perturbation result adata saved to: {perturb_result_adata_path}")

# =============================================================================

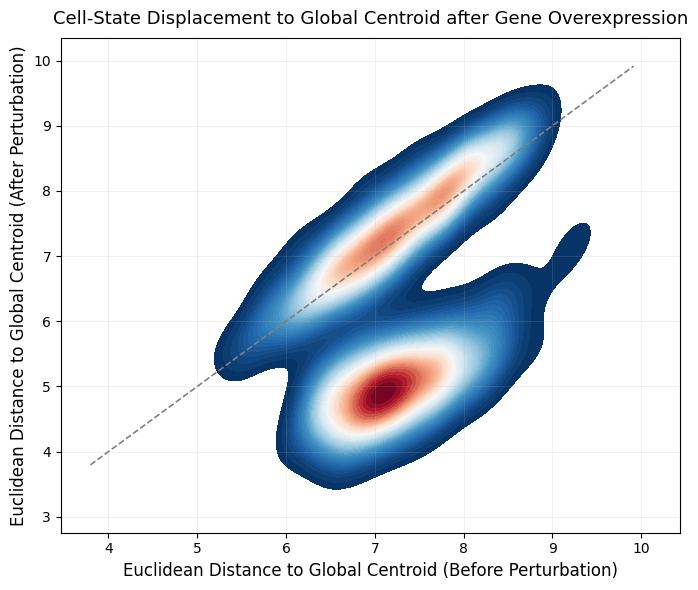

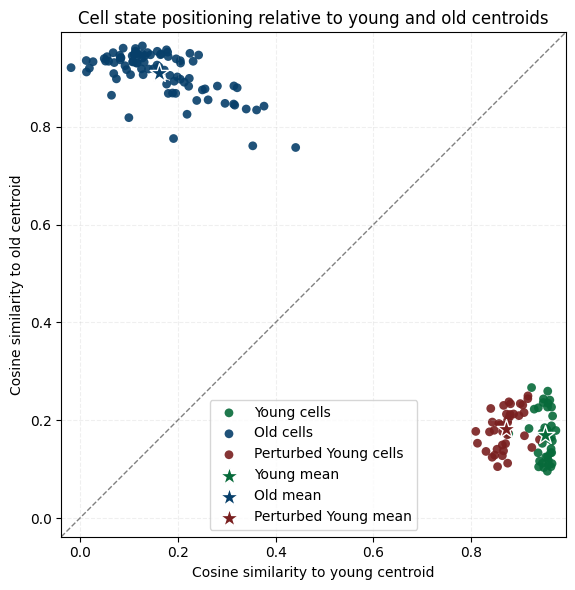

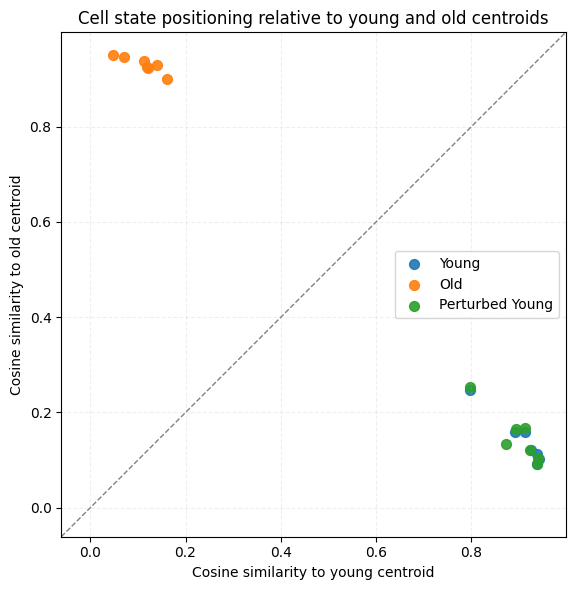

# Analyze embedding similarity change
# =============================================================================
# After perturbation, we compare embedding similarity between:
#   - young vs old target cells
#   - young vs old target-cell niches
# to quantify how Igkc overexpression shifts cellular and niche-level states.

target_slice_young = "Hippocampus_Y_2_1"
target_slice_old = "Hippocampus_O_2_1"
target_celltype = "OL-WM"

Perturbed 39 cells: set expression of target gene(s) to 60.
Perturbed input adata saved to: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/ko_old_final_input.h5ad
Forcing re-tokenization: clearing existing .parquet files and token folders...
No existing tokenized files found. Running tokenization...
path to process: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/ko_old_final_input.h5ad
before quality control adata shape: (976, 20318)
After HVG (5000) selection: (976, 5000)
Computing cell density...
compute_density_token time:  0.0038858334223429362 min
Begin processing: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/ko_old_final_bb_token_dir/tokens-0000.parquet
Table shape from parquet = 976
Preprocessing time: 0.04 minutes
Loaded pretrain_model checkpoint: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/bb_PriorKnowledge/epoch_0_step_800000.pt
obs_names and pred_indices are in the same order.
Embeddings saved to /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/ko_old_final_bb_embeddings.npz
Time cost:  0.29859442710876466
BB inference complete. Saved to: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/ko_old_final_bb_embeddings.npz
[INFO] Using explicitly provided CellFormer checkpoint: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/original_cellformer.pt
********** gene list size: 92076 **********
********** loading skip parameters: set() **********
After filtering, 20316 genes remain.
Model saved to /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/ko_old_final_cellformer.pt
Embeddings saved to /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/ko_old_final_embeddings.npz
Perturbation reconstruction complete. Embeddings and model saved.
adata_perturb: AnnData object with n_obs × n_vars = 976 × 20316
    obs: 'x', 'y', 'cell_type', 'n_genes_by_counts', 'log1p_n_genes_by_counts', 'total_counts', 'log1p_total_counts', 'pct_counts_in_top_50_genes', 'pct_counts_in_top_100_genes', 'pct_counts_in_top_200_genes', 'pct_counts_in_top_500_genes', 'total_counts_mito', 'log1p_total_counts_mito', 'pct_counts_mito', 'clusters', 'cell_label', 'slice', 'species', 'age_group', 'batch', 'brain_region', 'brain_region_main', 'slice_brain_area', 'density_token', 'split', 'platform', 'valid_split', 'x_FOV_px', 'y_FOV_px'
    var: 'gene_symbol', 'ensembl', 'human_symbol', 'human_ensembl'
    obsm: 'X_pca', 'X_umap', 'deviation_bin', 'neighbor_gene_distribution', 'spatial', 'spatial_um', 'bb_emb', 'X_emb', 'X_pred'
    layers: 'lognorm', 'raw_count'
Perturbation result adata saved to: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/ko_old_final_result.h5ad

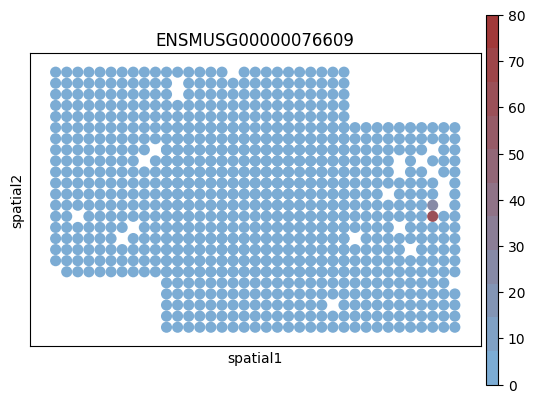

# This plot visualizes the spatial expression of Igkc (ENSMUSG00000076609)
# in both young and old mouse hippocampal ROIs, highlighting baseline
# differences in Igkc expression across aging conditions.

custom_colors = ["#7CACD4", "#A13939"]  # blue → red
cmap = mcolors.LinearSegmentedColormap.from_list("red_blue", custom_colors, N=10 + 1)

sc.pl.spatial(
    adata_fov_OL,
    color="ENSMUSG00000076609",  # Igkc
    spot_size=1,
    cmap=cmap,
    vmax=80,
    show=False,
)

# Ensure editable text in vector formats
plt.rcParams["pdf.fonttype"] = 42
plt.rcParams["svg.fonttype"] = "none"

fig = plt.gcf()  # get current figure

# This plot shows the spatial expression of Igkc (ENSMUSG00000076609)
# after gene overexpression (OE), highlighting how Igkc expression
# is distributed once the perturbation is applied to a specified
# target cell type (e.g., OL-WM cells).

# draw but do not show
custom_colors = ["#7CACD4", "#A13939"]  # blue → red
cmap = mcolors.LinearSegmentedColormap.from_list("red_blue", custom_colors, N=10 + 1)

sc.pl.spatial(
    perturbed_adata_final,
    color="ENSMUSG00000076609",  # Igkc
    spot_size=1,
    cmap=cmap,
    vmax=80,
    show=False,                 # keep figure in memory
)

# Ensure editable text in vector formats
plt.rcParams["pdf.fonttype"] = 42
plt.rcParams["svg.fonttype"] = "none"

fig = plt.gcf()  # get current figure
fig.suptitle(
    "Spatial expression of Igkc after overexpression in the specified target cell type",
    fontsize=13,
    y=0.98,
)

Text(0.5, 0.98, 'Spatial expression of Igkc after overexpression in the specified target cell type')

This block evaluates the effect of Igkc overexpression (OE) in young target cells.

Specifically, it compares embedding similarity between: (i) young vs old target cells before and after OE (cell-intrinsic effect), and (ii) young target-cell niches vs old-cell niches before and after OE (niche-level effect). Metrics include cosine similarity, Euclidean distance, Wasserstein distance (EMD), and MMD.

# =============================================================================
# Cell-intrinsic similarity: target young cells vs old cells (before / after OE)
# =============================================================================
result_cell = analyze_embedding_similarity_change_OE(
    adata_ori_result=adata_ori,
    adata_perturb_result=adata_perturb_final,
    target_slice_young=target_slice_young,
    target_slice_old=target_slice_old,
    target_celltype=target_celltype,
    embedding_key="X_emb",
)

cell_cosine_before, cell_cosine_after = result_cell["cosine"]
cell_euclid_before, cell_euclid_after = result_cell["euclidean"]
cell_emd_before, cell_emd_after = result_cell["emd"]
cell_mmd_before, cell_mmd_after = result_cell["mmd"]

print("Target cell (Young → Old) similarity after Igkc OE:")
print("  Cosine similarity        : before = {:.4f}, after = {:.4f}".format(cell_cosine_before, cell_cosine_after))
print("  Euclidean distance       : before = {:.4f}, after = {:.4f}".format(cell_euclid_before, cell_euclid_after))
print("  Wasserstein distance (EMD): before = {:.4f}, after = {:.4f}".format(cell_emd_before, cell_emd_after))
print("  MMD                      : before = {:.4f}, after = {:.4f}".format(cell_mmd_before, cell_mmd_after))

# =============================================================================
# Niche-level similarity: young target-cell niche vs old-cell niche (before / after OE)
# =============================================================================
result_niche = analyze_embedding_similarity_change_similarity_niche_OE(
    adata_ori_result=adata_ori,
    adata_perturb_result=adata_perturb_final,
    target_slice_young=target_slice_young,
    target_slice_old=target_slice_old,
    target_celltype=target_celltype,
    embedding_key="X_emb",
)

niche_cosine_before, niche_cosine_after = result_niche["cosine"]
niche_euclid_before, niche_euclid_after = result_niche["euclidean"]
niche_emd_before, niche_emd_after = result_niche["emd"]
niche_mmd_before, niche_mmd_after = result_niche["mmd"]

print("\nTarget cell niche (Young → Old) similarity after Igkc OE:")
print("  Cosine similarity        : before = {:.4f}, after = {:.4f}".format(niche_cosine_before, niche_cosine_after))
print("  Euclidean distance       : before = {:.4f}, after = {:.4f}".format(niche_euclid_before, niche_euclid_after))
print("  Wasserstein distance (EMD): before = {:.4f}, after = {:.4f}".format(niche_emd_before, niche_emd_after))
print("  MMD                      : before = {:.4f}, after = {:.4f}".format(niche_mmd_before, niche_mmd_after))

Target cell (Young → Old) similarity after Igkc OE:
  Cosine similarity        : before = 0.1655, after = 0.1792
  Euclidean distance       : before = 12.0616, after = 11.8573
  Wasserstein distance (EMD): before = 0.3415, after = 0.3398
  MMD                      : before = 0.0370, after = 0.0370

Target cell niche (Young → Old) similarity after Igkc OE:
  Cosine similarity        : before = 0.1066, after = 0.1100
  Euclidean distance       : before = 13.1777, after = 13.1947
  Wasserstein distance (EMD): before = 0.3707, after = 0.3711
  MMD                      : before = 0.0050, after = 0.0050

plot_cosine_to_centroids_with_perturb_OE(
    adata_ori=adata_ori,
    adata_perturb=adata_perturb_final,
    slice_young="Hippocampus_Y_2_1",
    slice_old="Hippocampus_O_2_1",
    target_celltype="OL-WM",
    exclude_celltype=True,
    # save_path=os.path.join(f"{out_fig_dir}/target_cell_cell_stat_Igkc.pdf")
)

# niche-only
plot_cosine_to_centroids_with_perturb_OE(
    adata_ori=adata_ori,
    adata_perturb=adata_perturb_final,
    slice_young="Hippocampus_Y_2_1",
    slice_old="Hippocampus_O_2_1",
    target_celltype="OL-WM",
    exclude_celltype=False,
    agg_by_celltype=True,
    # save_path=os.path.join(f"{out_fig_dir}/niche_cell_cell_stat.pdf")
)

Perturbation example: Igkc overexpression in young cells (all cell types)

This example demonstrates an in silico overexpression (OE) perturbation where Igkc is overexpressed in ALL cells from a young mouse hippocampal slice, without restricting to a specific cell type.

Compared with cell-type–specific perturbation, this setting allows users to investigate the global effect of Igkc overexpression on the tissue context, including both cell-intrinsic responses and indirect niche-level changes.

Key points:

• Only the slice is specified (“Hippocampus_Y_2_1”)

• No cell_type constraint is applied

• All cells within the selected slice are perturbed

• Igkc expression is set to a fixed value (60) in the selected cells

Users may alternatively:

• Specify cell_type in filter_by to restrict perturbation to a subset of cells

• Use multiplier instead of value to scale expression relative to baseline

perturbed_adata_final, perturbed_cells_final = apply_gene_perturbation(
    adata=adata_fov_OL,
    gene_list=["Igkc"],                  # Target gene to overexpress
    mode="overexpress",                  # Overexpression (OE) mode
    filter_by={
        "slice": "Hippocampus_Y_2_1",    # Apply to all cells in the young slice
        # "cell_type": "OL-WM",          # (Optional) restrict to a specific cell type
    },
    value=60,                            # Fixed overexpression value
)
print(f"Perturbed {len(perturbed_cells_final)} cells: set expression of target gene(s) to 60.")

# Save perturbed input AnnData
output_prefix_perturb = "ko_old_final"
perturb_input_adata_path = os.path.join(output_dir, f"{output_prefix_perturb}_input.h5ad")
perturbed_adata_final.write(perturb_input_adata_path)
print(f"Perturbed input adata saved to: {perturb_input_adata_path}")

# =============================================================================
# Run perturbation inference
# =============================================================================
# The perturbed AnnData is passed through the pretrained BrainBeacon + CellFormer
# pipeline to obtain reconstructed embeddings under the overexpression condition.

cellplm_ckpt_path = os.path.join(output_dir, f"{output_prefix_ori}_cellformer.pt")
adata_perturb_allcelltype = run_bbcellformer_pipeline(
    adata_path=perturb_input_adata_path,
    specie=specie,
    assay=assay,
    gene_dict_path=gene_dict_path,
    gene_mean_path=gene_mean_path,
    bb_ckpt_path=bb_ckpt_path,
    cellplm_ckpt_path=cellplm_ckpt_path,
    output_dir=output_dir,
    output_prefix=output_prefix_perturb,
    config_train=cfg_train,
    n_hvg=n_hvg,
    cd_weight=cd_weight,
    use_hvg=use_hvg,
    use_batch=False,
    use_spatial=True,
    weight_mode="expression",
    force_tokenize=True,
    do_fit=False,
    fit_epochs=10,
    device=device,
)
print("Perturbation reconstruction complete. Embeddings and model saved.")
print("adata_perturb:", adata_perturb_allcelltype)

perturb_result_adata_path = os.path.join(output_dir, f"{output_prefix_perturb}_result.h5ad")
adata_perturb_allcelltype.write(perturb_result_adata_path)
print(f"Perturbation result adata saved to: {perturb_result_adata_path}")

# =============================================================================
# Analyze embedding similarity change
# =============================================================================
# Downstream analysis typically compares:
#   - young vs old cells before and after perturbation
#   - cell-level vs niche-level embedding shifts
# to quantify how global Igkc overexpression reshapes aging-associated states.

target_slice_young = "Hippocampus_Y_2_1"
target_slice_old = "Hippocampus_O_2_1"
target_celltype = "OL-WM"

Perturbed 495 cells: set expression of target gene(s) to 60.
Perturbed input adata saved to: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/ko_old_final_input.h5ad
Forcing re-tokenization: clearing existing .parquet files and token folders...
No existing tokenized files found. Running tokenization...
path to process: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/ko_old_final_input.h5ad
before quality control adata shape: (976, 20318)
After HVG (5000) selection: (976, 5000)
Computing cell density...
compute_density_token time:  0.003885956605275472 min
Begin processing: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/ko_old_final_bb_token_dir/tokens-0000.parquet
Table shape from parquet = 976
Preprocessing time: 0.04 minutes
Loaded pretrain_model checkpoint: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/bb_PriorKnowledge/epoch_0_step_800000.pt
obs_names and pred_indices are in the same order.
Embeddings saved to /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/ko_old_final_bb_embeddings.npz
Time cost:  0.2884314298629761
BB inference complete. Saved to: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/ko_old_final_bb_embeddings.npz
[INFO] Using explicitly provided CellFormer checkpoint: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/original_cellformer.pt
********** gene list size: 92076 **********
********** loading skip parameters: set() **********
After filtering, 20316 genes remain.
Model saved to /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/ko_old_final_cellformer.pt
Embeddings saved to /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/ko_old_final_embeddings.npz
Perturbation reconstruction complete. Embeddings and model saved.
adata_perturb: AnnData object with n_obs × n_vars = 976 × 20316
    obs: 'x', 'y', 'cell_type', 'n_genes_by_counts', 'log1p_n_genes_by_counts', 'total_counts', 'log1p_total_counts', 'pct_counts_in_top_50_genes', 'pct_counts_in_top_100_genes', 'pct_counts_in_top_200_genes', 'pct_counts_in_top_500_genes', 'total_counts_mito', 'log1p_total_counts_mito', 'pct_counts_mito', 'clusters', 'cell_label', 'slice', 'species', 'age_group', 'batch', 'brain_region', 'brain_region_main', 'slice_brain_area', 'density_token', 'split', 'platform', 'valid_split', 'x_FOV_px', 'y_FOV_px'
    var: 'gene_symbol', 'ensembl', 'human_symbol', 'human_ensembl'
    obsm: 'X_pca', 'X_umap', 'deviation_bin', 'neighbor_gene_distribution', 'spatial', 'spatial_um', 'bb_emb', 'X_emb', 'X_pred'
    layers: 'lognorm', 'raw_count'
Perturbation result adata saved to: /inspire/ssd/project/sais-lifescience/public/yangyiwen_global/Brainbeacon/downstream_tasks/virtual_perturbation/outputs/ma2024aging_cell2niche_niche_inneroe/bbcellformer_epoch_0_setp_800000_hvg5000_cd0.02/ko_old_final_result.h5ad

def plot_global_euclidean_shift(
    adata_ori,
    adata_perturb,
    emb_key="X_emb",
    title="Perturbation-Induced Changes in Euclidean Distance to Global Reference",
    cmap="RdBu_r",
    save_path=None
):
    # ====== get embedding ======
    X_ori = adata_ori.obsm[emb_key]
    if hasattr(X_ori, "toarray"):
        X_ori = X_ori.toarray()

    X_perturb = adata_perturb.obsm[emb_key]
    if hasattr(X_perturb, "toarray"):
        X_perturb = X_perturb.toarray()

    global_centroid = X_ori.mean(axis=0, keepdims=True)

    # ====== cal euc ======
    dist_before = np.linalg.norm(X_ori - global_centroid, axis=1)
    dist_after = np.linalg.norm(X_perturb - global_centroid, axis=1)

    # ====== KDE  Plot ======
    plt.figure(figsize=(7, 6))
    sns.kdeplot(
        x=dist_before,
        y=dist_after,
        fill=True,
        cmap=cmap,
        bw_adjust=0.8,
        thresh=0.02,
        levels=60
    )

    min_val = min(dist_before.min(), dist_after.min())
    max_val = max(dist_before.max(), dist_after.max())
    plt.plot([min_val, max_val], [min_val, max_val], '--', color='gray', lw=1.2)
    plt.xlabel("Euclidean Distance to Global Centroid (Before Perturbation)", fontsize=12)
    plt.ylabel("Euclidean Distance to Global Centroid (After Perturbation)", fontsize=12)
    plt.title(title, fontsize=13, pad=10)
    plt.grid(alpha=0.2, lw=0.6)
    plt.tight_layout()
    if save_path:
        plt.savefig(save_path, bbox_inches="tight", dpi=500)
        plt.close()
    else:
        plt.show()

plot_global_euclidean_shift(
    adata_ori=adata_ori,
    adata_perturb=adata_perturb_allcelltype,
    title="Cell-State Displacement to Global Centroid after Gene Overexpression",
    # save_path="figures/Fig4d_Global_Euclidean_Shift.pdf"
)
